Module Type:Output

Model Number:1769-OB16P

Series:CompactLogix

Number of Outputs:16

Output Voltage Range:20.4-26.4VDC

Power Consumption:≤2W @ 24VDC

Input Voltage:24VDC

Mounting Options:DIN Rail or Panel

Dimensions:118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)

Weight:630 g (1.39 lb)

Protocol Compatibility:Modbus TCP/IP Server

Operating Temperature:-20°C to +60°C (-4°F to +140°F)

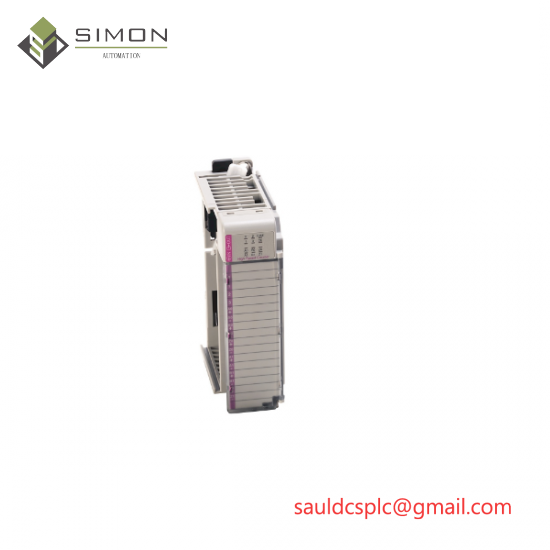

    The Allen-Bradley 1769-OB16P CompactLogix 16-P Output Module is engineered to provide seamless integration into complex control systems. It is designed for environments where precise control over 16 discrete outputs is critical. With its robust performance and compatibility, it ensures reliability and efficiency in food processing, petrochemicals, pulp and paper manufacturing, automobile assembly lines, and more.

    Featuring a compact design, this output module is compatible with both single slots and backplanes, offering flexibility in installation scenarios. It utilizes Ladder Logic for data transfer, ensuring a smooth flow of information between the module and the controller. The inclusion of Modbus TCP/IP protocol support enables easy communication with other devices in the network, facilitating enhanced automation capabilities.

    Constructed with high-quality materials, the 1769-OB16P is built to withstand demanding industrial conditions. Its sourcing outputs allow for direct connection to actuators, enabling precise control over processes. The module’s ability to operate within a wide voltage range ensures stability across different power sources, making it a versatile choice for global applications.

    To ensure optimal performance, the Allen-Bradley 1769-OB16P comes equipped with advanced diagnostic features, providing real-time feedback on module status and system health. This feature aids in proactive maintenance, reducing downtime and enhancing operational efficiency. The modular design allows for easy replacement and upgrade, keeping your system future-proof and adaptable to evolving industry standards.

    Experience the reliability and efficiency of the Allen-Bradley 1769-OB16P CompactLogix 16-P Output Module in your industrial control systems. This state-of-the-art technology empowers you to achieve higher productivity, improved quality, and lower costs through streamlined operations.
