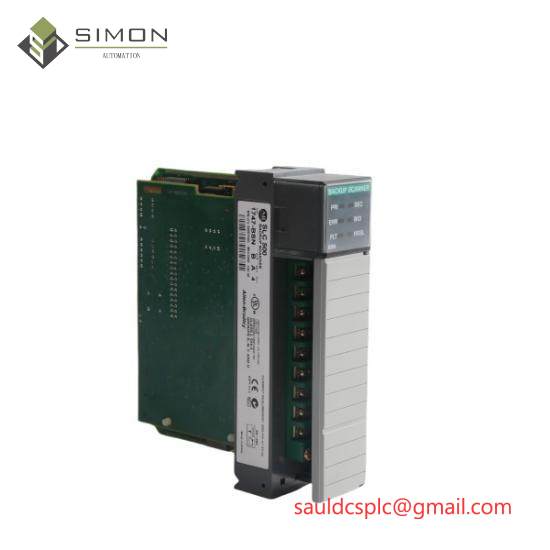

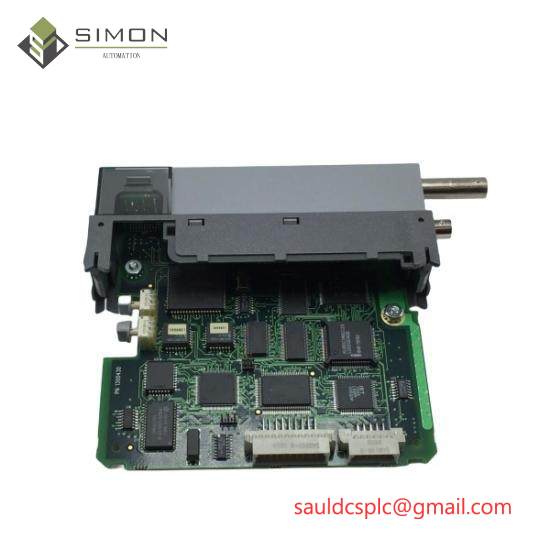

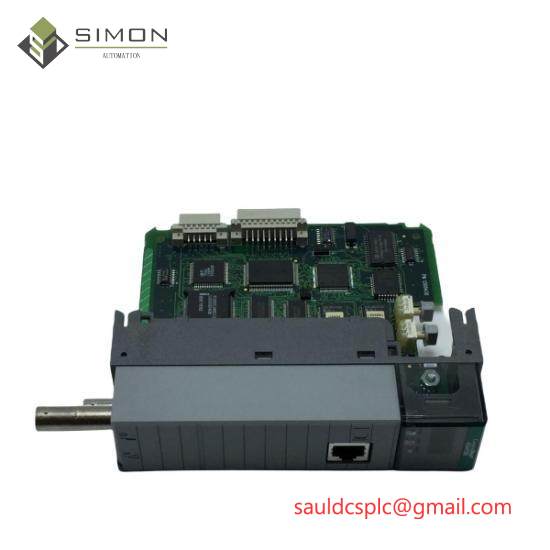

Model Type:Backup Scanner Module

Model Number:1747-BSN

Manufacturer:Allen-Bradley

Capacity:Backup storage for critical system configurations

Dimensions:5.5 x 3.6 x 5.7 inches

Weight:1.1 kg

Cable Type:Belden 9463

Connectors:6-Pin Phoenix Connector

Temperature Range:0 – 60 DEG C

Power Rating:7 – 30 VDC, 250 MA

Approval Standards:ROSTECHNADZOR, UL listed, CE marked, C-tick, GOST_R certified, KCC certified, marine-ABS certified, marine-BVS certified

    The Allen-Bradley 1747-BSN Backup Scanner Module is a critical component for maintaining operational integrity in industrial automation systems. Its design ensures seamless communication and data transfer between local and remote control stations, enhancing system reliability and efficiency.

    Equipped with advanced redundancy features, this module ensures that even in case of a primary failure, the system continues to operate without interruption, minimizing downtime and maximizing productivity.

    The module’s versatility lies in its ability to easily switch between DH+ and RIO communication protocols, allowing for flexible integration with various devices and operator interfaces. This feature simplifies setup and maintenance processes, making it a preferred choice for complex industrial environments.

    With its built-in DH+ link, the 1747-BSN module provides a dedicated channel for high-speed data transfer, crucial for applications requiring real-time feedback and control. This capability ensures that the system remains responsive and accurate, even under demanding conditions.

    The inclusion of a secondary RS-232/485 channel further enhances connectivity options, enabling the module to serve as a bridge between legacy systems and modern networks. This flexibility supports smooth migration to newer technologies while preserving investment in existing infrastructure.
