Model Type:Redundant Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CNBR/D

Number of Channels:2

Current Rating:970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous)

Communication Protocols:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz

Operating Temperature Range:-25°C to +70°C

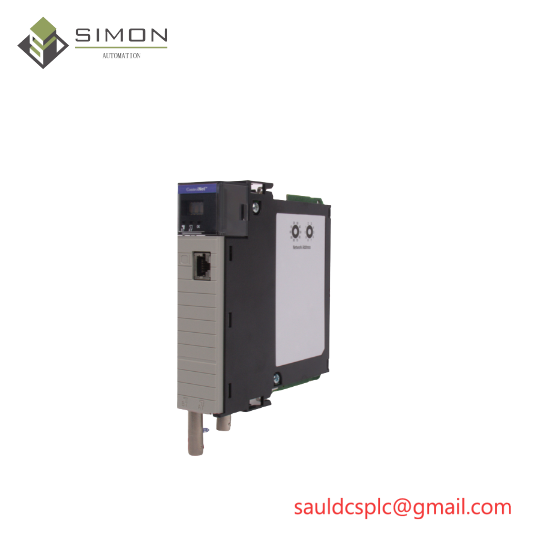

    The 1756-CNBR/D ControlNet Redundant Bridge Module is engineered for critical industrial applications requiring high availability and fault tolerance. Its redundant design ensures uninterrupted communication, even when one of the modules fails, thereby minimizing downtime and ensuring operational efficiency.

    Equipped with advanced signal processing capabilities, this module offers superior noise immunity, making it suitable for harsh industrial environments. It supports various ControlNet protocols, allowing seamless integration with existing systems and enhancing compatibility.

    Crafted from durable materials, the 1756-CNBR/D is designed for long-term reliability. It withstands extreme temperatures and vibrations commonly encountered in industrial settings, ensuring consistent performance over extended periods.

    Ease of installation and configuration is a key feature of the 1756-CNBR/D. It comes with comprehensive documentation and user-friendly interfaces, facilitating quick setup and maintenance. Technical support is available to assist users through every step of the process.

    Compliance with industry standards guarantees the 1756-CNBR/D’s compatibility with a wide range of automation equipment. It adheres to safety regulations, ensuring that it can be safely integrated into existing systems without compromising on safety or regulatory compliance.
