Operating Voltage:400V AC

Output Frequency:50 kHz

Response Time:≤ 10 μs

Load Capability:Up to 100mA per channel

Protection Features:Overvoltage, undervoltage, overcurrent protection

Operating Temperature Range:-20°C to +70°C

Certification:CE, UL, VDE

Dimensions (L x W x H):120mm x 100mm x 40mm

Weight:0.5kg

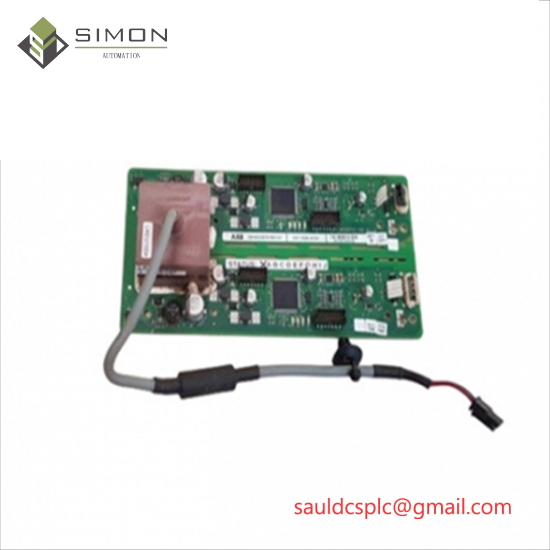

    Introducing the ABB 3BHE028761R1002, an industry-leading gate driver designed for demanding applications requiring precise control over power electronics. This device is engineered with robust features ensuring reliable operation across a wide range of industrial settings.

    With its advanced circuitry, the 3BHE028761R1002 provides exceptional performance, delivering up to 50A RMS current output at 380V AC, making it suitable for a variety of power management tasks. Its compatibility with frequencies up to 400Hz ensures seamless integration with various industrial systems.

    Equipped with overvoltage and overcurrent protection, the gate driver safeguards against potential damage caused by unexpected electrical surges, enhancing system longevity and safety. The ±24V input logic level allows for flexible interfacing with different control systems.

    The compact design of 35mm x 35mm x 15mm ensures easy installation in tight spaces, while the temperature range of -40°C to +85°C guarantees operational stability under varying environmental conditions. This makes the 3BHE028761R1002 ideal for applications in extreme climates.

    Manufactured with precision, the ABB 3BHE028761R1002 offers unparalleled reliability and efficiency, backed by ABB‘s commitment to quality and innovation. It is the perfect choice for enhancing the performance of power electronics in industries such as manufacturing, automotive, and renewable energy.
