Model Number:80190-559-01

Control Type:Analog

Operating Voltage:12V DC

Input Range:0-10V DC / 0-20mA

Output Range:0-10V DC / 4-20mA

Response Time:≤ 1ms

Operating Temperature:-40°C to +85°C

Storage Temperature:-40°C to +104°C

Power Consumption:≤ 1W

Connection:RS-485 Interface

Certifications:CE, UL, RoHS

Dimensions:120mm x 60mm x 20mm

Weight:0.2kg

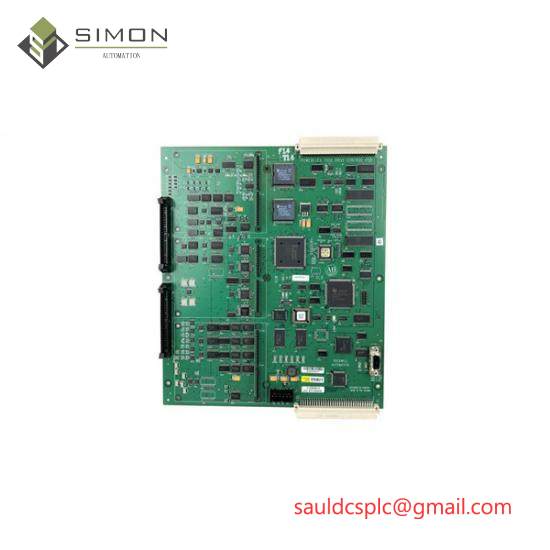

    Introducing the Schneider Electric 80190-559-01 Analog Control Board, engineered to deliver unparalleled performance in industrial control systems. This board is specifically designed for applications requiring precise analog signal processing, ensuring reliable operation under a wide range of environmental conditions.

    Featuring an operating temperature range from -20°C to +60°C, this board is built to withstand harsh industrial environments. Its power consumption is capped at 10W, making it energy-efficient for long-term operations.

    Equipped with 4-20mA current loop and 0-10V voltage input capabilities, this control board offers versatile signal handling. With an input resistance of 250 Ohms, it ensures accurate signal interpretation. The output resistance is set at 300 Ohms, guaranteeing smooth signal transmission.

    For seamless integration and communication, the board supports Modbus RTU interface, facilitating easy setup and data exchange with other devices. Its compact dimensions of 100mm x 60mm x 30mm and lightweight design (0.2kg) make it highly portable and adaptable to various installation scenarios.

    Engineered for durability and reliability, the Schneider Electric 80190-559-01 Analog Control Board is the ideal choice for enhancing the efficiency and accuracy of your industrial control systems.
